Column chart

This chart displays the values of one or more measures by period or category. The height of a column determines the measure value: the higher the column, the larger the value.
Unlike line charts, this type of chart assumes that different periods are compared directly and an emphasis is made on a measure's individual value rather than its general trend.

bar-chart

Source table
Year Sales
2022 6M
2021 28M
2020 18M
2019 9M
2018 1M

Types of column charts

With grouping

A chart with grouping lets you compare two or more measures: for example, the number of products delivered and the number picked up. The column height corresponds to the measure value.

bar-chart-groupped

Source table
Year Delivery Pickup
2022 2M 4M
2021 8M 19M
2020 5M 13M
2019 3M 6M
2018 331K 918K

Stacked

This chart shows the ratio of internal segments by period. Segments are placed one above the other: the base of each subsequent segment is the outermost boundary of the previous one.
Since the sum of all segments is equal to the total length of a column, when column totals are important this type of chart is used.

bar-chart-stacked

Source table
Year Delivery Pickup
2022 2M 4M
2021 8M 19M
2020 5M 13M
2019 3M 6M
2018 331K 918K

Wizard sections

Wizard
section
Description
X Dimensions. You can specify one or two dimensions. Affects X-axis value grouping. The order of specified dimensions affects the order of value grouping on the X-axis. For the Date and Date and time types, you can set grouping by time: minutes, hours, weeks, and so on.
Y Measure. You can specify multiple measures. If you add more than one measure to a section, the Colors section will contain a dimension named Measure Names.
Colors Measure Names dimension or field. Affects the column color. To delete Measure Names, click the cross icon or remove measures from the Y axis.
Sorting Dimension or measure. Affects the column sorting. Sorting only applies to dimensions used when building a chart. The sorting direction is marked with an icon next to the field: for ascending or for descending. To change the sorting direction, click the icon.
Labels Measure. Displays measure values on the chart. When using multiple measures for a signature, add Measure Values.
Split Dimension. Splits a chart horizontally by the selected dimension's values. The maximum number of splits per chart is 25.
Filters Dimension or measure. Used as a filter. A filter can be overridden by a dashboard selector if the selector is based on the same field.

Creating a column chart

To create a bar chart:

Warning

If you use a new DataLens object model with workbooks and collections:

  1. Go to the DataLens home page. In the left-hand panel, select Collections and workbooks.
  2. Open the workbook, click Create in the top-right corner, and select the appropriate object.

Follow the guide from step 4.

  1. Go to the DataLens home page.
  2. In the left-hand panel, select Charts.
  3. Click Create chartChart.
  4. At the top left, click Select dataset and specify the dataset to visualize.
  5. Select Bar chart as the chart type.
  6. Drag a dimension from the dataset to the X section. The values will be displayed in the lower part of the chart on the X axis.
  7. Drag one or more measures from the dataset to the Y section. The values will be displayed as columns on the Y-axis.

By default, a stacked chart is displayed if you have multiple measures.

Creating a grouped column chart

To display an X-axis grouped column chart:

  1. Go to the column chart that you created.

  2. Depending on the number of measures in the Y section, follow these steps:

    1. Check if there is a dimension in the Colors section.
    2. Duplicate this dimension in the X section. The sequence of dimensions affects the grouping order.

    one-measure

    1. Drag the Measure Names dimension to the Colors section.
    2. Drag the Measure Names dimension to the X section. The sequence of dimensions affects the grouping order.

    two-measures

Adding a column color based on a measure

To color columns in a chart based on the value of a measure:

  1. Go to the column chart that you created.

  2. Depending on the number of measures in the Y section, follow the steps below:

    Copy the measure from the Y section to the Colors section.

    Columns in the chart will take on colors as a function of the measure values.


    Drag the Measure Values measure to the Colors section.

    The columns in the chart will take on colors depending on the values of all the measures listed in the Y section.


  3. Configure a color gradient for the measure as well. To do this, in the top right-hand corner of the Colors section, click (the icon is displayed when you mouse over the section).

  4. In the color settings, specify:

    • Gradient type: Select two or three colors.
    • Gradient color: Select a color palette for the gradient from the list.
    • Gradient direction: Change the gradient direction using the icon.
    • Set threshold values: Set numeric thresholds for each color. Works if the Y section contains a single value.

Configuring the display of nullvalues

If the source data includes a row where the measure value is null, the chart will not be built for that point at default settings. For example, if the source has a row with a date (20.07.2022) but the sales amount for it is missing.

You can configure how the chart will display null values in the chart section settings:

  1. In the section with a measure whose values you want to show, in the top-right corner, click (the icon appears when you hover over the section).
  2. In Empty values (null), select Display as 0.
  3. Click Apply.

Now, the chart will use 0 instead of null.

If a row is missing from the source data completely, the chart section settings will not change the way the chart is presented. For example, if the source does not have a row with a certain date (20.07.2022), nothing will be shown for this date on the chart.

For more information, see Configuring the display of null values.

Recommendations

  • If category values contain a lot of text, try to make it shorter so that chart signatures look neater. You can use string functions or the CASE conditional statement in calculated fields.

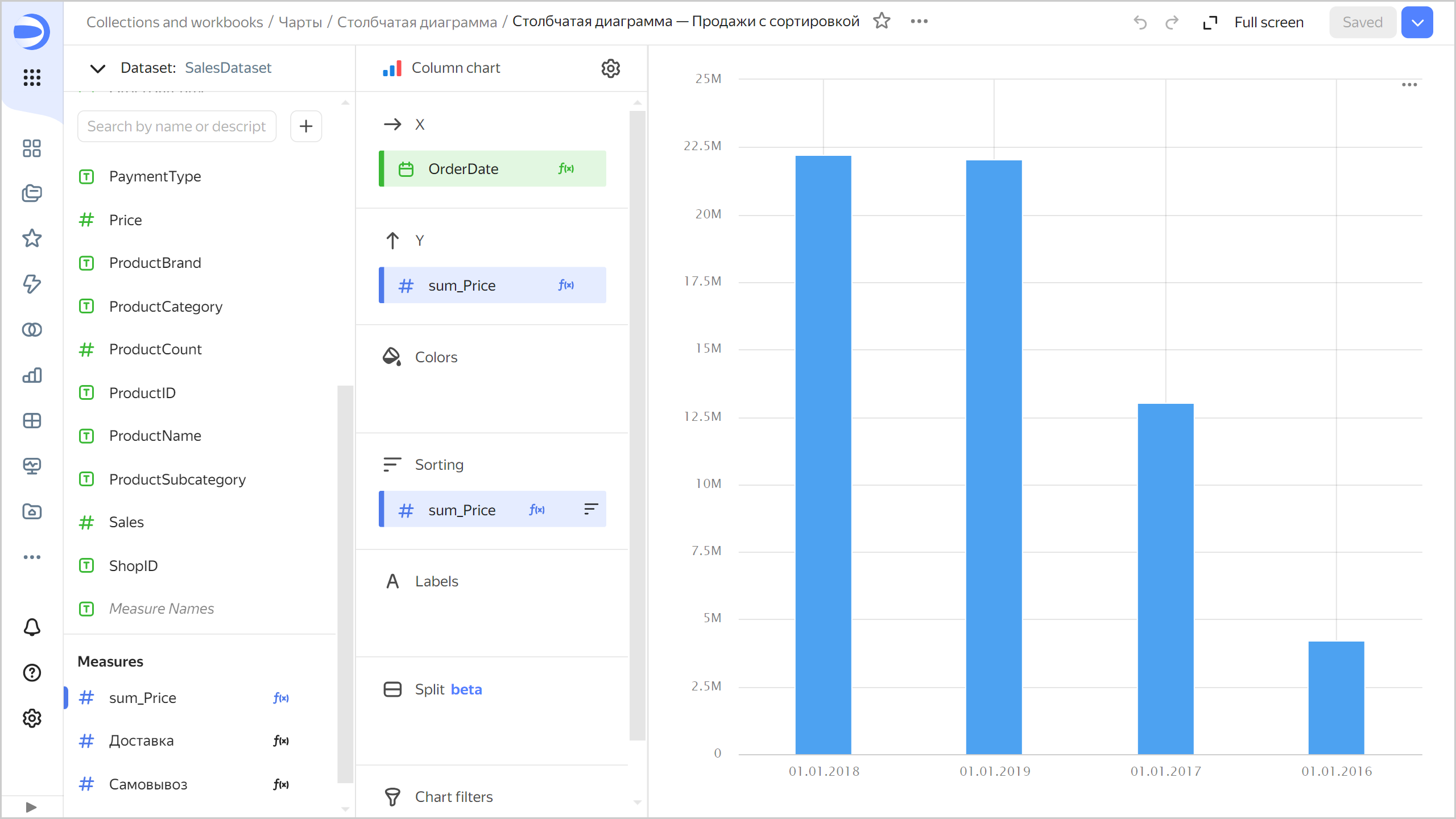

  • If each column is a category rather than a time value, consider sorting the columns in ascending or descending order of the measure. This will make your chart look better and more informative. Sorting may also be helpful inside each column's subcategories.

  • We recommend using a column chart to display changes to a measure or measures over time. In this case, be careful when sorting values on the X-axis, because the user usually expects to see changes over time on the X-axis.

  • When visualizing multiple measures, select colors carefully. They should be distinguishable and contrasting. We recommend using no more than 3-5 colors per chart. If you want to emphasize one certain measure above the others, highlight it in some bright color.

  • You can split a chart by dimension into a number of small charts that are convenient to compare to one another. To do this, drag a dimension from the dataset to the Split section.

    Chart example

    bar-chart-split
